R-9837 LED Bollard

SECTION 32 39 13.17

LIGHTED BOLLARDS

GENERAL

1. SUMMARY
   1. Section Includes:
      1. Solar-powered light bollards.
      2. AC hardwired light bollards.
      3. Accessories
      4. [_________________]
   2. Related Requirements:
      1. [Division 03 Sections: [Concrete] [Mortar] fill for security posts.]
      2. [Division 08 Sections: Padlocks.]
      3. [_________________]
2. REFERENCE STANDARDS
   1. ASTM A36 – Standard Specification for Carbon Structural Steel.
   2. ASTM A312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes.
   3. ASTM A500 – Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes.
   4. ASTM A536 – Standard Specification for Ductile Iron Castings.
   5. ASTM B26 – Standard Specification for Aluminum-Alloy Sand Castings.
   6. CE Mark – Manufacturer’s declaration of compliance with European Union Low Voltage Directive 2006/95/EC.
   7. RoHS – Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment.
3. SUBMITTALS
   1. Comply with Section [01 33 00 – Submittal Procedures.] [_________.]
   2. Product Data: Provide for each type of bollard, component, finish, and accessory specified.
   3. Color Samples: [Submit manufacturer’s standard colors for selection.] [Submit sample of color specified.]
   4. Setting Drawings: Show embedded items and cutouts required for work specified in other Sections.
   5. Maintenance Data: Submit manufacturer’s field touch-up, cleaning, and maintenance instructions.
   6. Warranty Documentation: Submit sample of manufacturer’s warranty.
4. QUALITY ASSURANCE
   1. Comply with Section [01 43 00 – Quality Assurance.] [_________.]
5. DELIVERY, STORAGE, AND HANDLING
   1. Comply with Section [01 66 00 – Product Storage and Handling Requirements.] [_________.]
   2. Protect bollards and accessories during delivery, storage, and handling.
6. WARRANTY
   1. Comply with Section [01 78 36 – Warranties.] [_________.]
   2. Provide manufacturer’s standard warranty against defects in materials and workmanship.
      1. Warranty Period: Five years from date of invoice, except as otherwise indicated.
         1. Coatings: Two years, against peeling, cracking, or significant color change.

PRODUCTS

1. MANUFACTURERS
   1. Manufacturer: Reliance Foundry Co. Ltd.
      1. Phone: 604-547-0460 or 1-877-789-3245
      2. Fax: 604-590-8875
      3. Website: https://www.reliance-foundry.com/bollard
      4. Email: info@reliance-foundry.com
   2. Substitutions: [Comply with provisions of [Section 01 25 00 "Substitution Procedures"] [_________] for substitution procedures.] [Not allowed.]
2. LIGHTED BOLLARDS
   1. Material: Aluminum
   2. Country of Origin: China.
   3. Bollard [Designer’s Designation]:

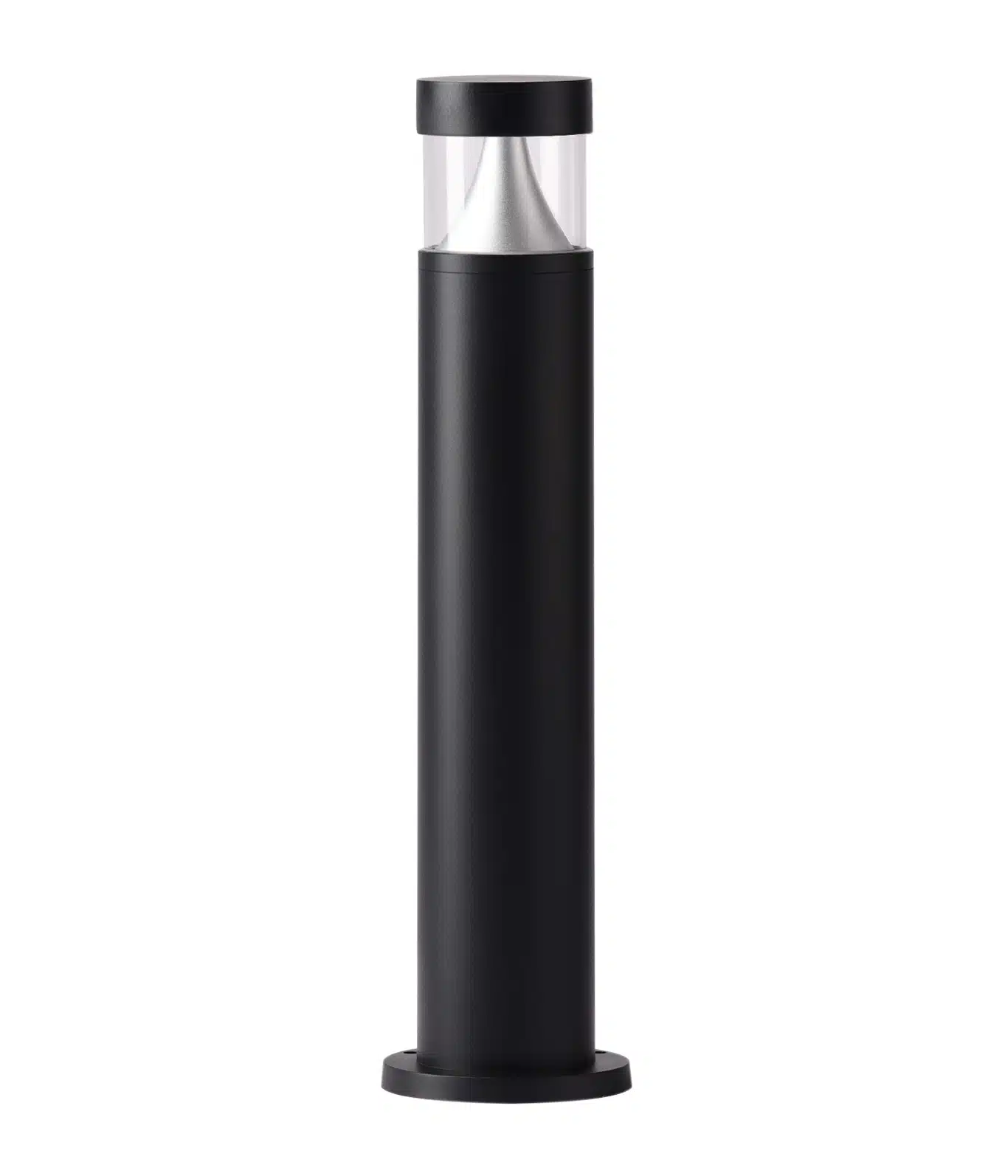

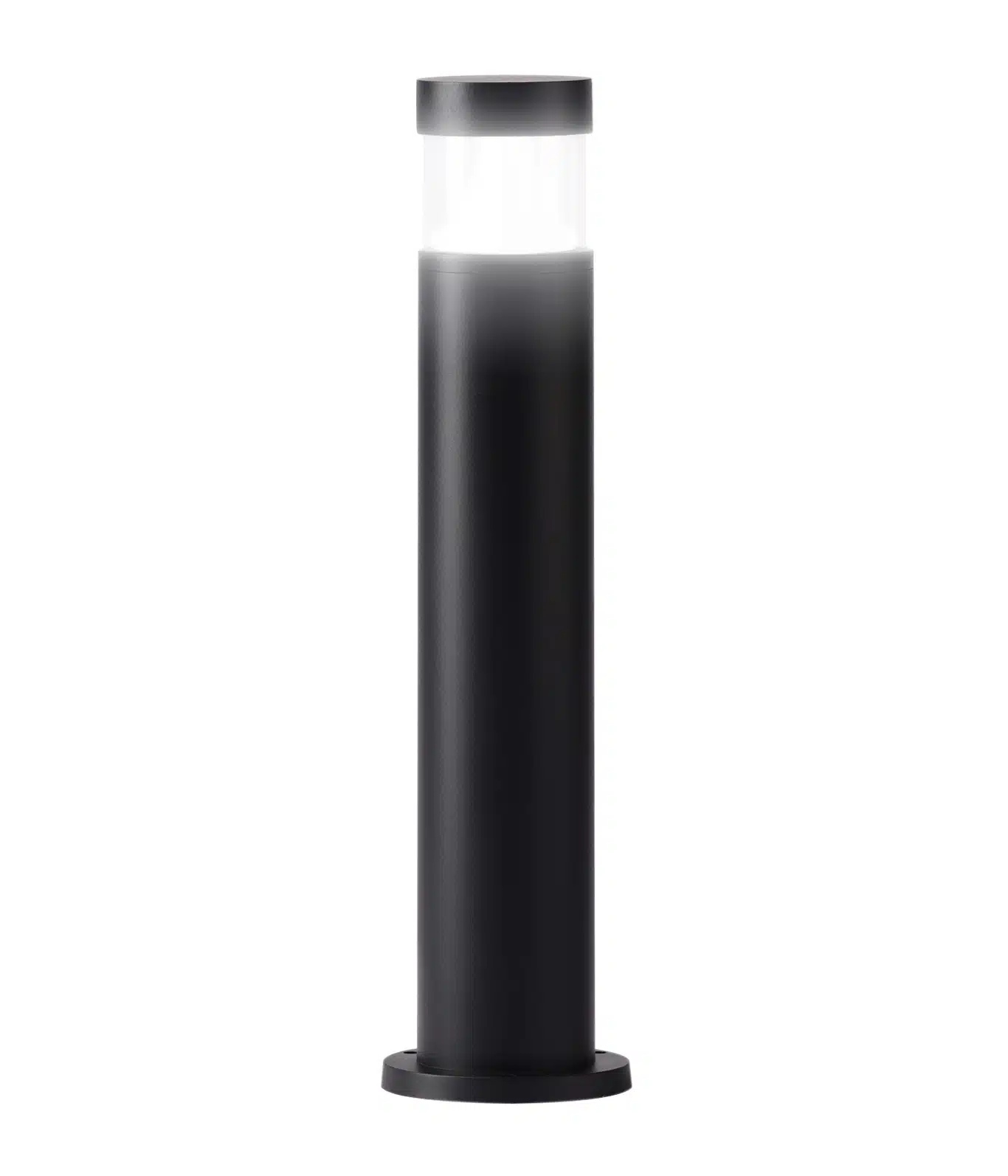

      1. Model: Reliance Foundry; r-9837.
      2. Height: 25 3/8 in (64.5 cm)
      3. Base Diameter: 7 1/8 in (18.1 cm)
      4. Body Diameter: 4 11/16 in (11.9 cm)
      5. Weight: 5.6 lbs (2.6 kg)
      6. Design: Cylindrical with decorative lighted cap.
      7. Color Coating:
         1. Type: Polyester powder coat over epoxy primer.
         2. Color: [Black.]
      8. Installation:
         1. Fixed, existing concrete, bolt down.
      9. Lamp: Light-emitting diodes (LEDs); 30,000 hours rating
      10. Total Output: 970 lumens.
      11. Housing: Cast aluminum, AL6063.
      12. Certifications:
          1. IP65 Rated LED
      13. LED Color: 4000K
      14. Input Voltage: 100 VAC to 240 VAC
      15. Frequency: 50/60 Hz

EXECUTION

1. EXAMINATION
   1. Examine paving or other substrates for compliance with manufacturer’s requirements for placement and location of embedded items, condition of substrate, and other conditions affecting installation of bollards.
   2. Proceed with installation only after unsatisfactory conditions have been corrected.
2. INSTALLATION
   1. General: Comply with manufacturer’s installation instructions and setting drawings.
   2. Do not install damaged, cracked, chipped, deformed or marred bollards. Field touch-up minor imperfections in accordance with manufacturer’s instructions. Replace bollards that cannot be field repaired.
3. CLEANING & PROTECTION
   1. Protect bollards against damage.
   2. Immediately prior to Substantial Completion, clean bollards in accordance with manufacturer’s instructions to remove dust, dirt, adhesives, and other foreign materials.
   3. Touch up damaged finishes according to manufacturer’s instructions.
4. CLOSEOUT ACTIVITIES
   1. Provide executed warranty.

END OF SECTION
