R-8464-30 Stainless Steel Removable Bollard

SECTION [32 39 13.15]

METAL ACCESS CONTROL BOLLARDS

GENERAL

1. SUMMARY
   1. Section Includes:
      1. Removable bollards
      2. Retractable bollard set
      3. Collapsible bollards
      4. Accessories
      5. [_________________]
   2. Related Requirements:
      1. [Division 03 Sections: [Concrete] [Mortar] fill for security posts.]
2. REFERENCE STANDARDS
   1. ASTM A36 – Standard Specification for Carbon Structural Steel.
   2. ASTM A312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes.
   3. ASTM A500 – Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes.
   4. ASTM A536 – Standard Specification for Ductile Iron Castings.
   5. ASTM B26 – Standard Specification for Aluminum-Alloy Sand Castings.
3. SUBMITTALS
   1. Comply with Section [01 33 00 – Submittal Procedures.] [_________.]
   2. Product Data: Provide for each type of bollard, component, finish, and accessory specified.
   3. Color Samples: [Submit manufacturer’s standard colors for selection.] [Submit sample of color specified.]
   4. Setting Drawings: Show embedded items and cutouts required for work specified in other Sections.
   5. Maintenance Data: Submit manufacturer’s field touch-up, cleaning, and maintenance instructions.
   6. Warranty Documentation: Submit sample of manufacturer’s warranty.
4. QUALITY ASSURANCE
   1. Comply with Section [01 43 00 – Quality Assurance.] [_________.]
5. DELIVERY, STORAGE, AND HANDLING
   1. Comply with Section [01 66 00 – Product Storage and Handling Requirements.] [_________.]
   2. Protect bollards and accessories during delivery, storage, and handling.

PRODUCTS

1. MANUFACTURERS
   1. Manufacturer: Reliance Foundry Co. Ltd.
      1. Phone: 604-547-0460 or 1-877-789-3245
      2. Fax: 604-590-8875
      3. Website: https://www.reliance-foundry.com/bollard
      4. Email: info@reliance-foundry.com
   2. Substitutions: [Comply with provisions of [Section 01 25 00 "Substitution Procedures"] [_________] for substitution procedures.] [Not allowed.]
2. RETRACTABLE BOLLARD SET
   1. Material: [Coated] Stainless Steel.
      1. Pipe: ASTM A312, Grade TP 316.
      2. Plate: ASTM A959, GradeTP 316.
   2. Country of Origin: China
   3. Bollard [Designer’s Designation]:
      1. Model: Reliance Foundry; r-8464-30.
      2. Height: 30-1/8 in (76.5 cm)
      3. Diameter: 4-1/2 in (11.4 cm) body; 6-1/2 in (16.5 cm) base
      4. Weight: 17 lbs (7.7 kg)
      5. Design: Fixed cylinder with flat top.
      6. Lock: Receiver with key.
      7. Color Coating:
         1. Type: Polyester powder coat over epoxy primer.
         2. Color: [Stainless Steel - Brushed] [Black textured semi gloss] [Dark green] [Statuary bronze] [Bengal silver] [Anodized silver] [Safety yellow].
         3. Reflective Stripe: [Yellow] [Red] [White] [Blue] [None].

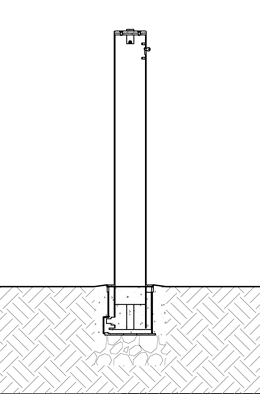

      8. Installation:
         1. Removable, new concrete, receiver with key
         2. Removable, existing concrete, receiver with key

EXECUTION

1. EXAMINATION
   1. Examine paving or other substrates for compliance with manufacturer’s requirements for placement and location of embedded items, condition of substrate, and other conditions affecting installation of bollards.
   2. Proceed with installation only after unsatisfactory conditions have been corrected.
2. INSTALLATION
   1. General: Comply with manufacturer’s installation instructions and setting drawings.
   2. Do not install damaged, cracked, chipped, deformed or marred bollards. Field touch-up minor imperfections in accordance with manufacturer’s instructions. Replace bollards that cannot be field repaired.
3. CLEANING & PROTECTION
   1. Protect bollards against damage.
   2. Immediately prior to Substantial Completion, clean bollards in accordance with manufacturer’s instructions to remove dust, dirt, adhesives, and other foreign materials.
   3. Touch up damaged finishes according to manufacturer’s instructions.
4. CLOSEOUT ACTIVITIES
   1. Provide executed warranty.

END OF SECTION
