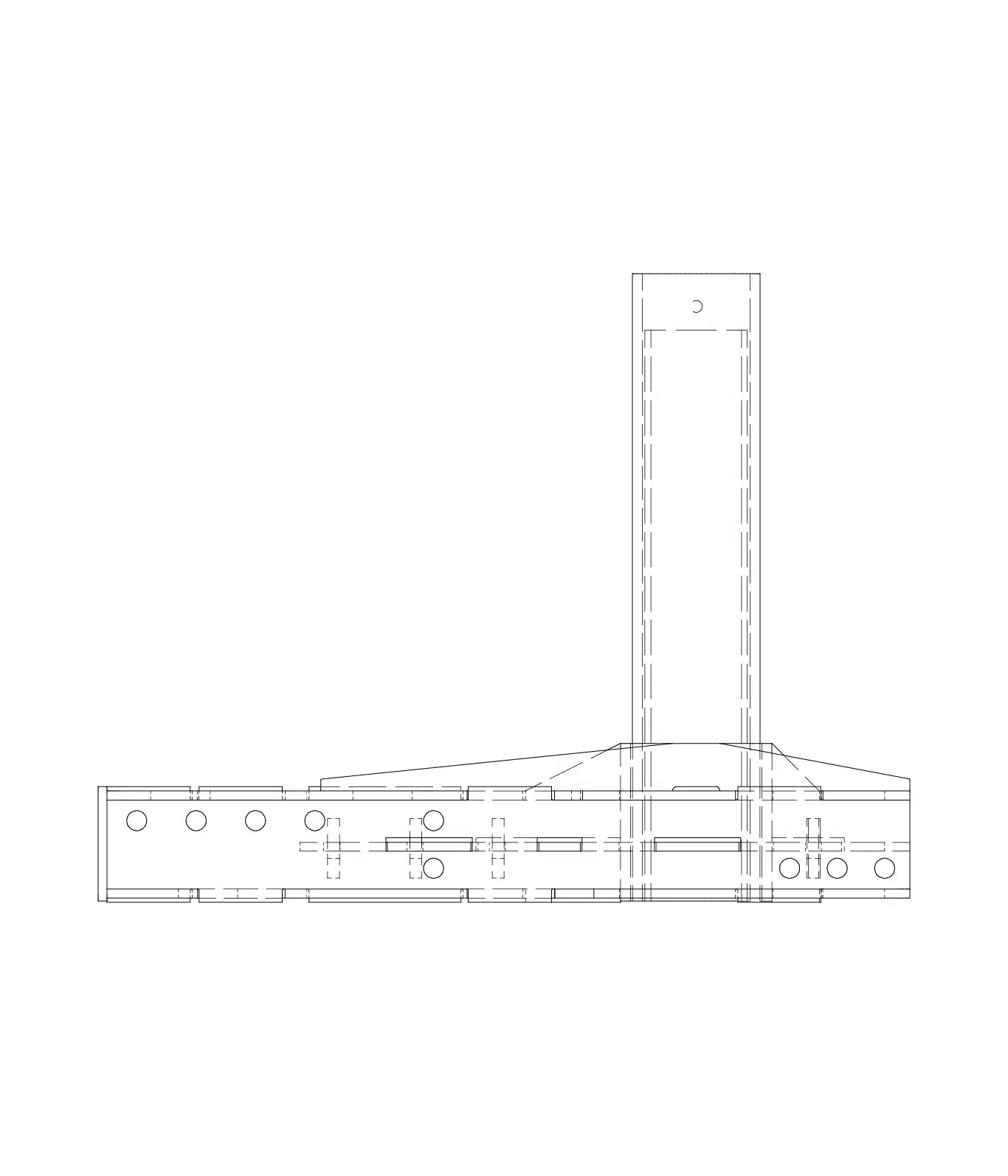

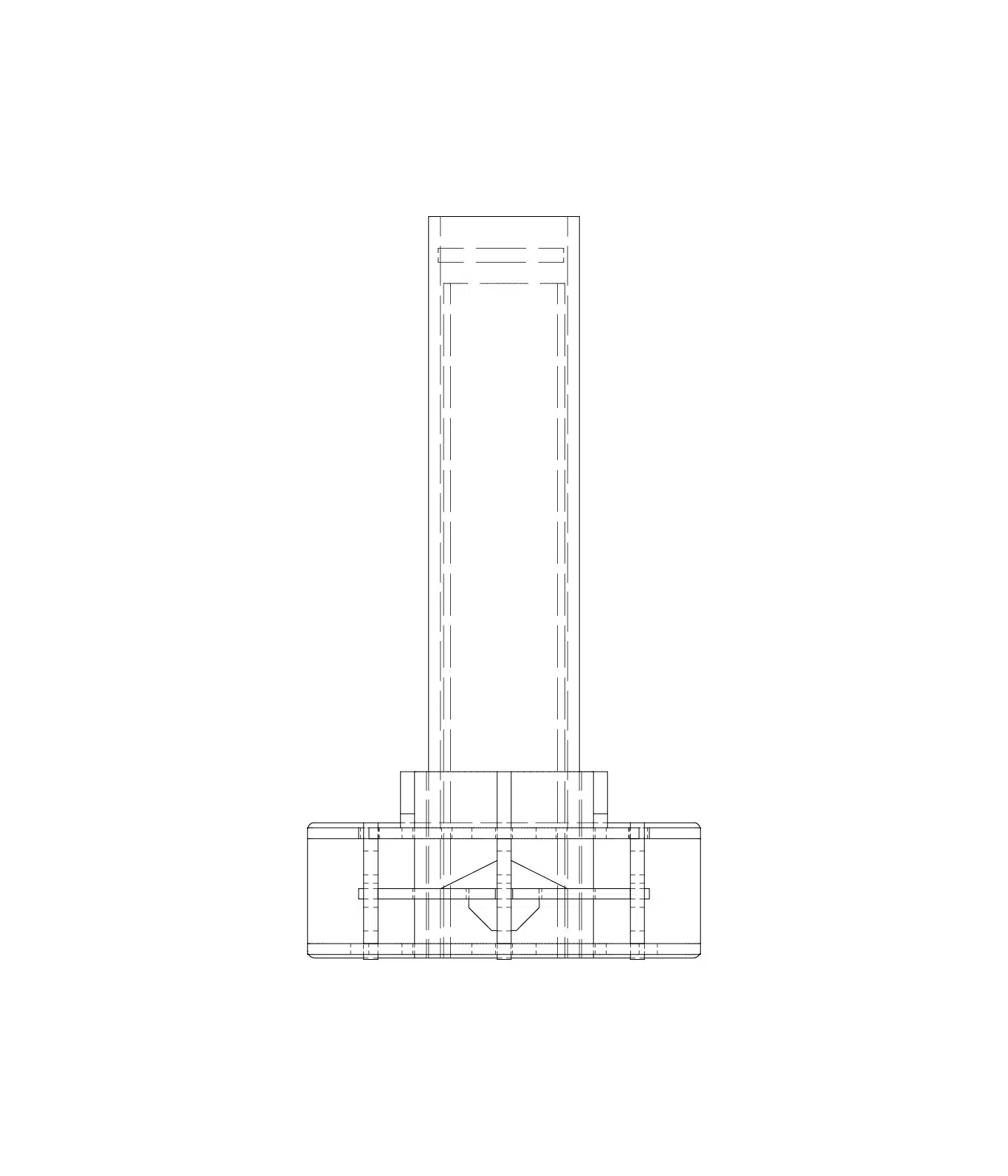

Patriot M50 Shallow Mount Crash-Rated Bollard – R-1009-12-SM

USD $5,026.00

Reliance Foundry’s Patriot R-1009-12-SM offers M50-level protection in a shallow-mount, fixed installation. Certified to ASTM F2656 M50 P1, this bollard stops a 15,000 lb vehicle traveling at 50 mph. The shallow foundation design allows deployment in areas where deep excavation is impractical, without compromising on strength. Fabricated in the USA with Buy America–compliant steel, the R-1009-12-SM is ideal for high-security installations requiring certified impact protection and simplified site integration.

Key Features:

  • ASTM F2656 M50 P1 crash-rated for 15,000 lb vehicles at 50 mph
  • Shallow mount installation—reduced excavation required
  • Fixed design ensures maximum perimeter security
  • Manufactured in the USA, Buy America compliant
  • Long-lasting steel construction with primed black coating

The Patriot R-1009-12-SM provides certified defense against high-speed threats while simplifying installation in challenging environments.

Qty USD$
1 - 9 5,026
10 - 49 4,887
50 - 99 4,775
100 + Call for pricing
Get quote
Add to compare
Downloads

If you require more resource materials, please contact our customer service department.

Specifications
Weight (lbs)

1965
Function

Fixed Crash-Rated Bollard
Height (in)

39 1/2
Body Diameter (in)

10 3/4
Material

Steel
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Patriot M50 Shallow Mount Crash-Rated Bollard – R-1009-12-SM”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Short Form Specs

SECTION 11 12 43

VEHICLE BARRIER SYSTEMS

GENERAL

  1. SUMMARY
    1. Section Includes:
      1. Crash-rated bollards.
      2. [_________________]
    2. Related Requirements:
      1. [Section 03 30 00: Cast-in-Place Concrete]
      2. [Section 28 13 63 - Access Control Vehicle Identification System]
      3. [_________________]
  2. REFERENCE STANDARDS
    1. Department of Defense (DoD) approved and listed on Anti-Ram Vehicle Barrier List
  3. SUBMITTALS
    1. Manufacturer’s Product Data
      1. Comply with Section [01 33 00 – Submittal Procedures.] [_________.]
      2. Product Data: Provide for each type of bollard, component, finish, and accessory specified.
      3. Maintenance Data: Submit manufacturer’s field touch-up, cleaning, and maintenance instructions.
      4. Warranty Documentation: Submit sample of manufacturer’s warranty.
    2. Setting Drawings: Show embedded items and cutouts required for work specified by other Sections.
  4. QUALITY ASSURANCE
    1. Comply with Section [01 43 00 – Quality Assurance.] [_________.]
  5. DELIVERY, STORAGE, AND HANDLING
    1. Comply with Section [01 66 00 – Product Storage and Handling Requirements.] [_________.]
    2. Protect bollards and accessories during delivery, storage, and handling.
  6. WARRANTY
    1. Comply with Section [01 78 36 – Warranties.] [_________.]

PRODUCTS

  1. MANUFACTURERS
    1. Manufacturer: Reliance Foundry Co. Ltd.
      1. Phone: 604-547-0460 or 1-877-789-3245
      2. Fax: 604-590-8875
      3. Website: https://www.reliance-foundry.com/bollard
      4. Email: info@reliance-foundry.com
    2. Substitutions: [Comply with provisions of [Section 01 25 00 "Substitution Procedures"] [_________] for substitution procedures.] [Not allowed.]
  2. CRASH-RATED BOLLARDS
    1. Crash-rated bollard [Designer’s Designation]: R-1009-12-SM
      1. Model: Reliance Foundry; R-1009-12-SM.
      2. Height: 52 7/8 in (134.3 cm)
      3. Height Above Grade: 39-1/2 in (100.3 cm)
      4. Diameter: 10 3/4 in (27.3 cm)
      5. Weight: 1965 lbs (891.3 kg)
      6. Design: Shallow Mount M50 Crash-Rated Bollard
      7. Material: Steel.
      8. Country of Origin: United States
      9. Finish: Paint coated.
      10. Color Coating:
        1. Type: Paint.
        2. Color: [Black]
      11. Installation:
        1. Concrete Embedded

EXECUTION

  1. EXAMINATION
    1. Examine paving or other substrates for compliance with manufacturer’s requirements for placement and location of embedded items, condition of substrate, and other conditions affecting installation of bollards.
    2. Proceed with installation only after unsatisfactory conditions have been corrected.
  2. INSTALLATION
    1. General: Comply with manufacturer’s installation instructions and setting drawings.
    2. Do not install damaged, cracked, chipped, deformed, or marred bollards. Field touch-up minor imperfections in accordance with manufacturer’s instructions. Replace bollards that cannot be field repaired.
  3. CLEANING & PROTECTION

    Normal cleaning may be done with clean water and a soft cloth. Detailed cleaning and inspection instructions are available at www.reliance-foundry.com/bollard/maintenance-bollards.

    1. Protect bollards against damage.
    2. Immediately prior to Substantial Completion, clean bollards in accordance with manufacturer’s instructions to remove dust, dirt, adhesives, and other foreign materials.
    3. Touch up damaged finishes according to manufacturer’s instructions.
  4. CLOSEOUT ACTIVITIES
    1. Provide executed warranty.

END OF SECTION

Copyright 2025 by Reliance Foundry Co. Ltd.; qualified design and construction professionals may copy for preparation of construction specifications and purchase orders for Reliance Foundry products.
