Vector S10 Patriot Removable Crash-Rated Bollard

SECTION 11 12 43

VEHICLE BARRIER SYSTEMS

GENERAL

1. SUMMARY
   1. Section Includes:
      1. Crash-rated bollards.
      2. [_________________]
   2. Related Requirements:
      1. [Section 03 30 00: Cast-in-Place Concrete]
      2. [Section 28 13 63 - Access Control Vehicle Identification System]
      3. [_________________]
2. REFERENCE STANDARDS
   1. Department of Defense (DoD) approved and listed on Anti-Ram Vehicle Barrier List
3. SUBMITTALS
   1. Manufacturer’s Product Data
      1. Comply with Section [01 33 00 – Submittal Procedures.] [_________.]
      2. Product Data: Provide for each type of bollard, component, finish, and accessory specified.
      3. Maintenance Data: Submit manufacturer’s field touch-up, cleaning, and maintenance instructions.
      4. Warranty Documentation: Submit sample of manufacturer’s warranty.
   2. Setting Drawings: Show embedded items and cutouts required for work specified by other Sections.
4. QUALITY ASSURANCE
   1. Comply with Section [01 43 00 – Quality Assurance.] [_________.]
5. DELIVERY, STORAGE, AND HANDLING
   1. Comply with Section [01 66 00 – Product Storage and Handling Requirements.] [_________.]
   2. Protect bollards and accessories during delivery, storage, and handling.
6. WARRANTY
   1. Comply with Section [01 78 36 – Warranties.] [_________.]

PRODUCTS

1. MANUFACTURERS
   1. Manufacturer: Reliance Foundry Co. Ltd.
      1. Phone: 604-547-0460 or 1-877-789-3245
      2. Fax: 604-590-8875
      3. Website: https://www.reliance-foundry.com/bollard
      4. Email: info@reliance-foundry.com
   2. Substitutions: [Comply with provisions of [Section 01 25 00 "Substitution Procedures"] [_________] for substitution procedures.] [Not allowed.]
2. CRASH-RATED BOLLARDS
   1. Crash-rated bollard [Designer’s Designation]:

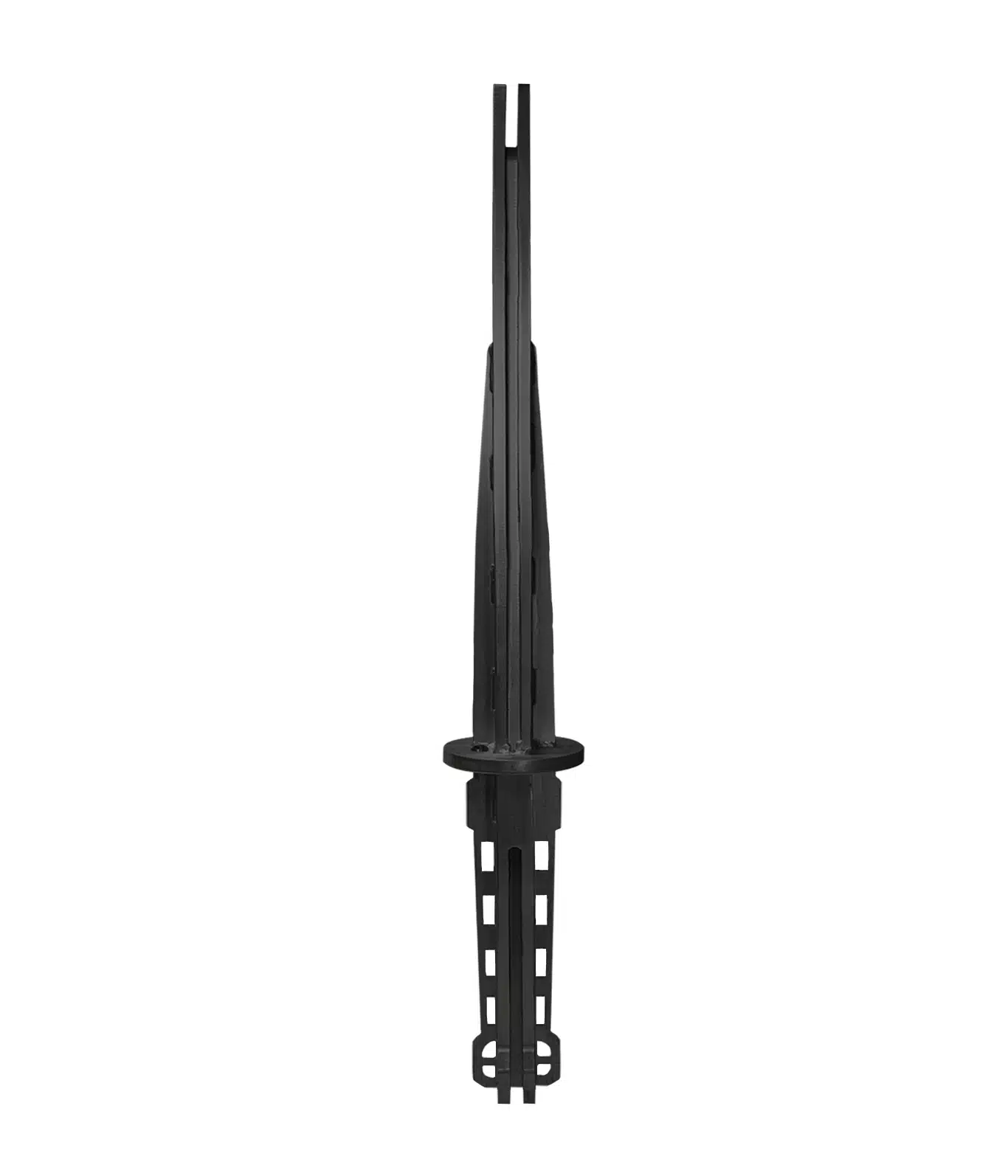

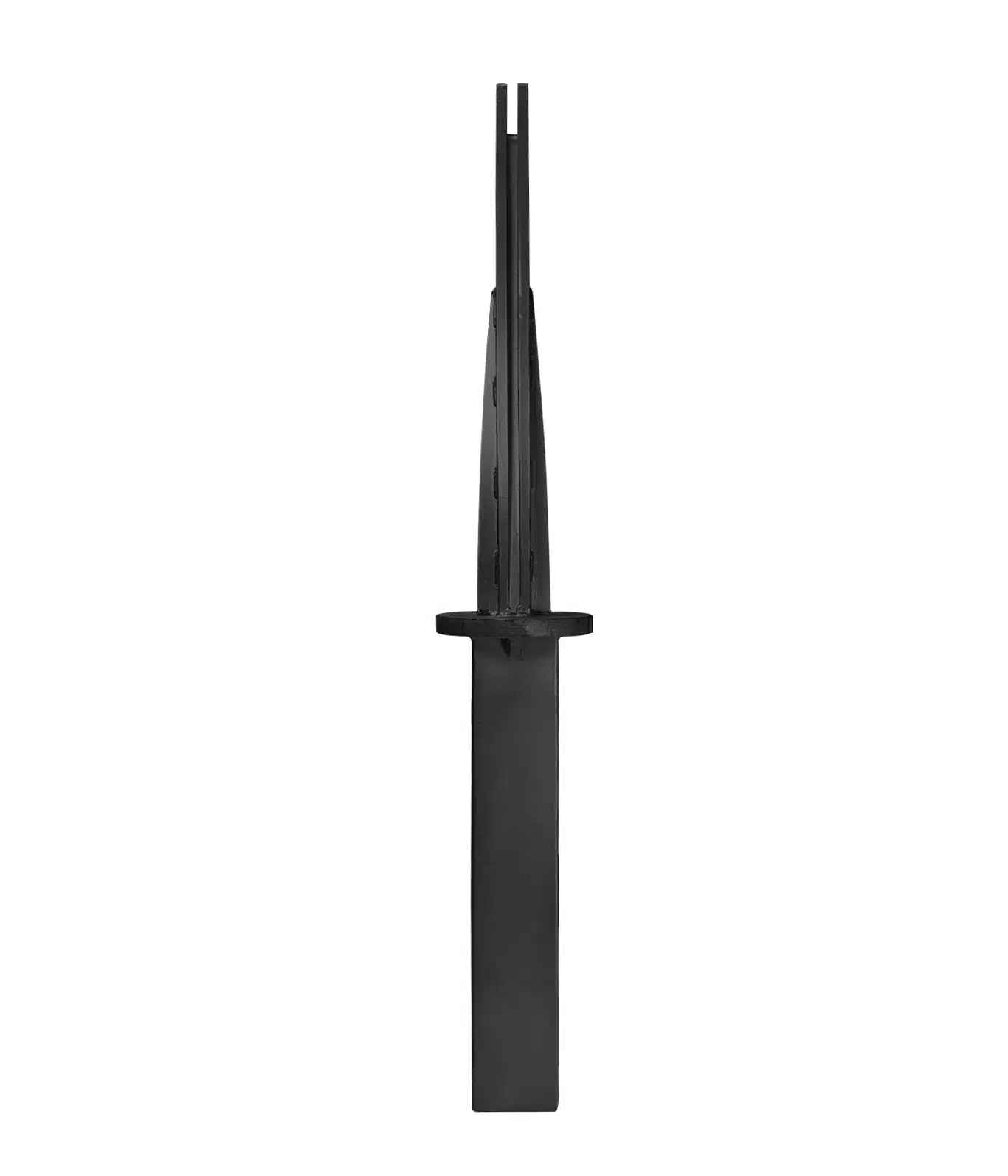

      1. 1. Model: Reliance Foundry; R-1010-S10-R Patriot.
         2. Height: 65 inches (165.1 cm)
         3. Height Above Grade: 32 in (81.3 cm)
         4. Height Below Grade: 33 in (83.8 cm)
         5. Max Width: 5 7/8 inches (14.9 cm)
         6. Weight: 150 lbs. (68 kg)
         7. Design: S10 removable crash engineered bollard.
         8. Material: Steel.
         9. Country of Origin: United States.
         10. Finish: Hot-dip Galvanized.
   2. Installation:
      1. Concrete Embedded

EXECUTION

• EXAMINATION
  1. Examine paving or other substrates for compliance with manufacturer’s requirements for placement and location of embedded items, condition of substrate, and other conditions affecting installation of bollards.
  2. Proceed with installation only after unsatisfactory conditions have been corrected.
• INSTALLATION
  1. General: Comply with manufacturer’s installation instructions and setting drawings.
  2. Do not install damaged, cracked, chipped, deformed, or marred bollards. Field touch-up minor imperfections in accordance with manufacturer’s instructions. Replace bollards that cannot be field repaired.
• CLEANING & PROTECTION

  Normal cleaning may be done with clean water and a soft cloth. Detailed cleaning and inspection instructions are available at www.reliance-foundry.com/bollard/maintenance-bollards.

  1. Protect bollards against damage.
  2. Immediately prior to Substantial Completion, clean bollards in accordance with manufacturer’s instructions to remove dust, dirt, adhesives, and other foreign materials.
  3. Touch up damaged finishes according to manufacturer’s instructions.
• CLOSEOUT ACTIVITIES
  1. Provide executed warranty.

END OF SECTION
